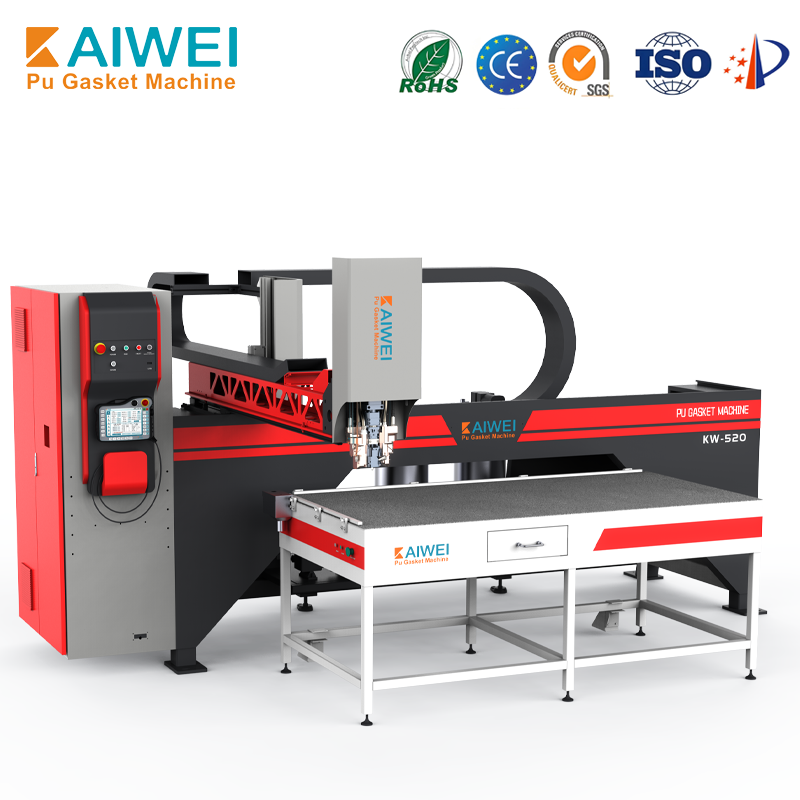

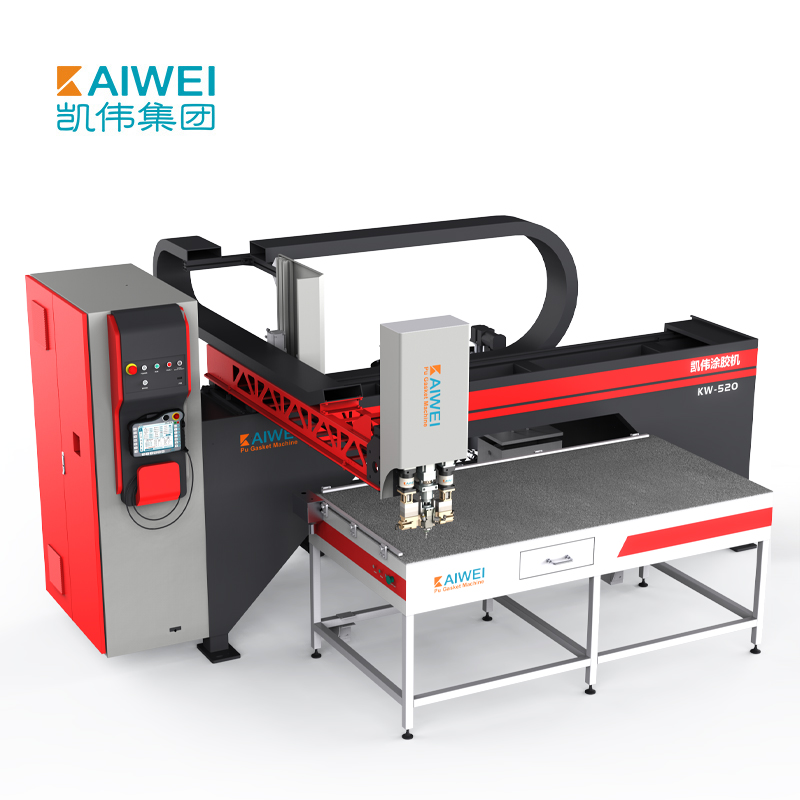

Auto Foam Sealing Machine

530.217
530.217

Vehicle Specifications

Brand
KAIWEI
Equipment No
KW-530
Gasket width
6-30 mm
Operating controller
integrated
Effective working range
2300x1250x200 mm (X*Y*Z)
Raw Material
PU (component A+B+C)
Equipment Overall Space
4000X3300X2300 mm(L*W*H)
Color

530

Effective gluing stroke is 2300 * 1250 * 200mm. The integrated operation box can rotate 0-90°,no need to remove the electrical wire in the transportation and commissioning. It has 3 raw material tanks and a 3-component mixing head, which can meet the needs of different products using different glues and avoid the trouble of replacing raw materials. The standard machine is equipped with a handheld controller. The raw material tanks adopt an integrated design, no need to dismantle the pipe and wire in the transportation and commissioning, so as to avoid glue leakage and polluting the equipment and environment. The max. speed of plane processing is 12m / min.

KW530配置表
